Hello Readers, hope you’re well.

A quick one today on a new service in the Microsoft Teams Admin Centre.

Network Planner

Teams Network Plannerl-04The Network Planner helps you determine and organize the network requirements for connecting your organization to Teams.  You add the details of your entire network including individual sites, the WAN and internet egress details along with personas and user counts and the Network Planner calculates the network requirements for using Teams.

How to do it

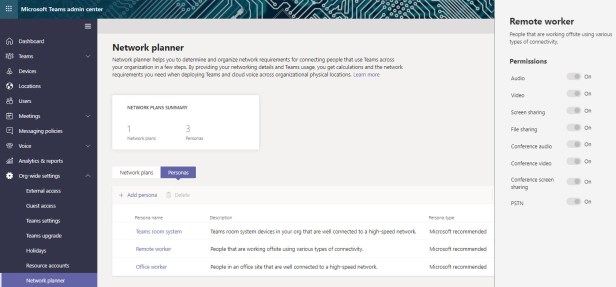

First, personas.  Personas determine the type of user you have in your company.  There are three default “Microsoft Recommended” personas.  Click on one and you’ll see what permissions are allowed.

Teams Network Plannerl-03

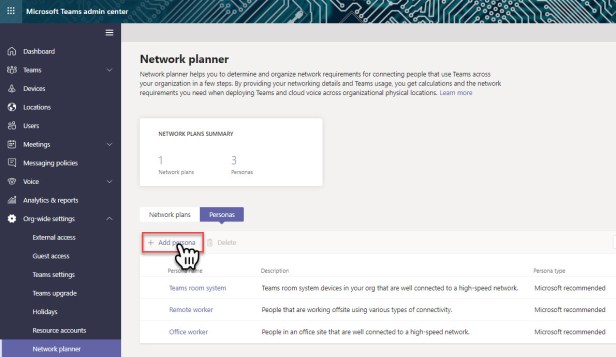

You can create new personas by clicking Add persona

Teams Network Plannerl-20

Then give it a name and use the on/off switches to assign permissions (workloads).

Teams Network Plannerl-19

When you save the new persona you’ll see it in the list

Teams Network Plannerl-21

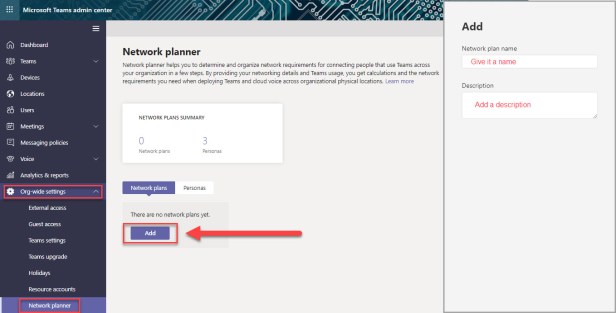

Now go back and add a network plan and give it a name and description

Teams Network Planner-05

Go back to the previous screen and click on your new plan

Teams Network Planner-07

Now add a Network Site

Teams Network Planner-06

And enter all the details including user count, network subnets, whether you’re using Express Route or  WAN including access speed and internet egress.

Teams Network Plannerl-01

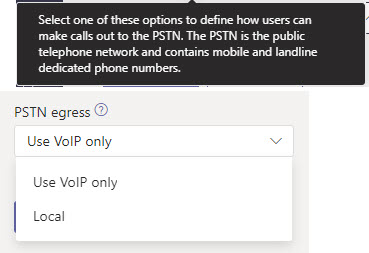

And lastly, whether you’re using VoIP or a local SBC for PSTN egress.  The Docs site lists the choices as none, remote or local.

Teams Network Planner-08

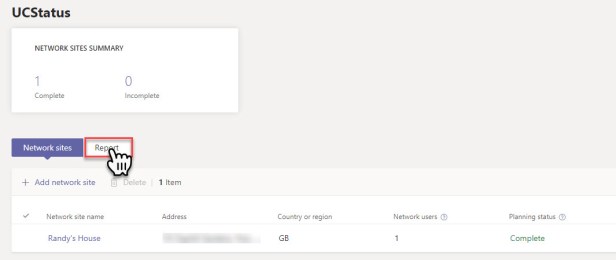

Then save and go back to your network site list.  Then click report

Teams Network Planner-09

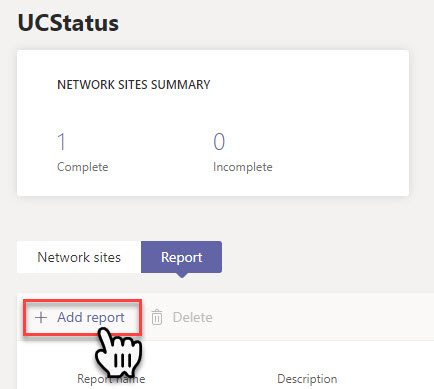

Add Report

Teams Network Planner-10

Name it and add personas as needed

Teams Network Planner-12

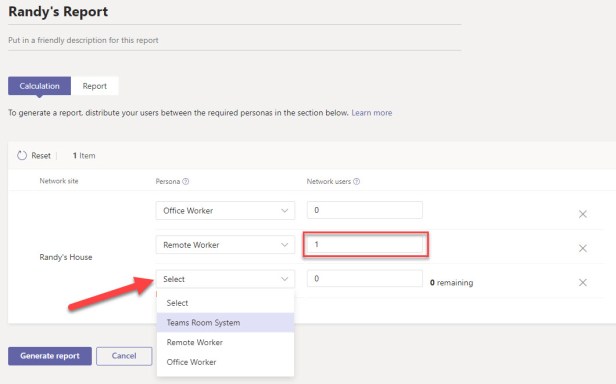

Apply the users to each persona.  If you use the Microsoft recommended personas, the number will be distributed automatically (80% office worker and 20% remote worker).

Teams Network Planner-11

Then Generate the report

Teams Network Planner-13

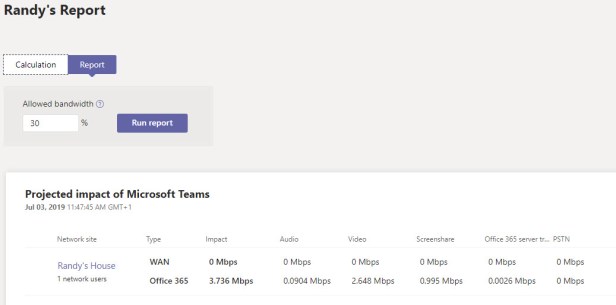

The default view is the Table View

Teams Network Plannerl-18

You can switch to a chart view or export the report to PDF

Teams Network Plannerl-15Teams Network Plannerl-17Teams Network Plannerl-14

This is the chart view

Teams Network Plannerl-16

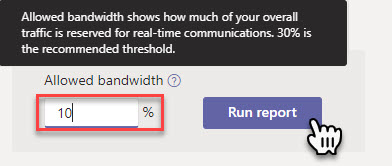

You can also adjust the bandwidth that has been reserved for real-time communications.

Teams Network Plannerl-23

Each time you run a report, it is added to the history so you can go back and take a look.

Teams Network Plannerl-22

Wrap up

The Network Planner is a welcome addition to the Teams Admin Centre.  It helps you plan and visualize the impact of using Teams on your network.  The Network Planner in the Teams Admin Centre replaces the bandwidth calculator from the MyAdvisor site.  If you visit https://aka.ms/bwcalc you’ll get a 404 not found.  Now you know why 😉.

For more information on the Network Planner, visit the Microsoft Docs page here.

And that’s all folks!  Thanks for reading.
